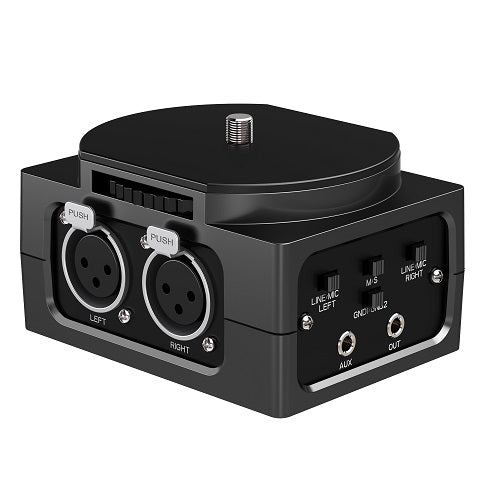

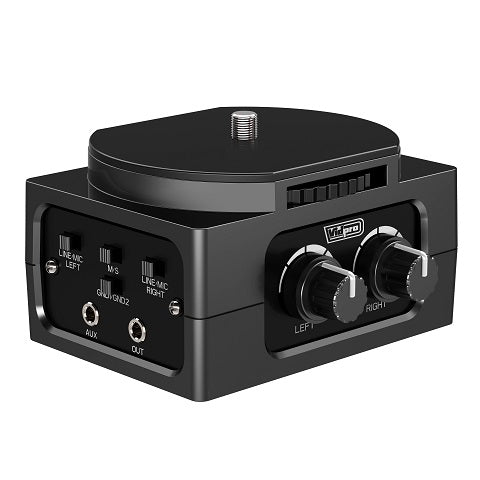

XM-AD2 Dual Channel XLR-Mini Audio Adapter

The Vidpro XM-AD2 allows you to connect two XLR devices (microphones, pre-amps, mixers etc.) to your cameras audio input.

Users can convert two separate mono audio channels (as most pro shotgun mics provide) into one clear stereo channel.

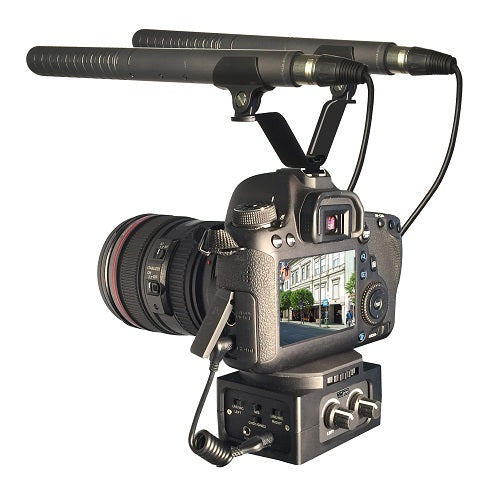

Designed for use with DSLRs, Camcorders and Pro Video Cameras.

  FEATURES

• ULTRA HIGH QUALITY TRANSFORMERS REDUCE RFI, HUM AND OTHER UNWANTED NOISE
• INDEPENDENTLY ADJUST SIGNAL LEVELS ON EACH INPUT CHANNEL USING THE DUAL TRIM CONTROLS
• PASSIVE OPERATION PROVIDES NOISE FREE PLUG-N-PLAY OPERATION WITH NO BATTERIES REQUIRED
• EXTREMELYWIDEDYNAMIC RANGE FOR SUPERB, CLEAN & CRISP SOUNDING AUDIO
• CAMERAS EASILY ATTACH TO THE UNIT VIA BUILT-IN TRIPOD SCREW
• INTEGRATED 1/4” SOCKET ALLOWS MOUNTING ONTO TRIPODS OR OTHER SUPPORT EQUIPMENT

SPECIFICATIONS:

CONNECTOR INPUT:

2   BALANCED XLR JACKS

1   MINI-JACK 3.5mm (unbalanced)

CONNECTOR OUTPUT:

1  STEREO MINI-JACK (3.5mm)

INPUT LEVEL:

MIC:    35 dBu    LINE:  -10/+4 dBu

OUTPUT LEVEL: STANDARD MIC

FREQUENCY RESPONSE

10Hz TO 100kHz (+/- 1.5dB)

DIMENSIONS 8.5L x 8W x 5Hcm

UNIT WEIGHT  6.7oz  (191g)

One Year Warranty
